In complex oil and gas completion engineering, modern wellbores increasingly depend on downhole electrical, hydraulic, and fiber-optic communication channels to optimize production and maintain real-time reservoir monitoring. Artificial lift systems such as Electrical Submersible Pumps, permanent downhole pressure and temperature gauges, surface-controlled subsurface safety valves, and intelligent multi-zone completion valves rely on continuous lines running along the exterior of the production tubing string. These control lines include flat armored electric cables, round encapsulated power cables, encapsulated stainless steel hydraulic control tubes, and fiber-optic capillaries.
During running, pulling, or long-term production operations, these external cables and lines are subjected to severe dynamic forces. As the production tubing string travels inside the casing, severe friction against the internal casing wall, mechanical impact during tripping, rotational torque, and crushing forces across tubing collars can easily sever or pinch unprotected lines. A single tear in an electric cable armor or a crush failure in a hydraulic control line causes immediate completion failure, requiring a costly, unplanned workover to pull the entire tubing string.
To safeguard these vital lines, global completion engineers specify heavy-duty Cross Coupling Cable Protectors. These centralizing and shielding assemblies encapsulate control lines directly across tubing couplings, preventing mechanical impact, eliminating fatigue wear, and ensuring long-term operational integrity. This technical guide provides an in-depth analysis of cross coupling cable protector design architecture, mechanical features, dynamic downhole forces, material selection, and field integration best practices.
Understanding the Mechanics of Downhole Cable Vulnerability
A production tubing string consists of multiple pipe joints threaded together with external couplings or collars. Because the outer diameter of a tubing coupling is larger than the pipe body, control lines running along the exterior are pushed outward at every connection point.
This dimensional offset creates distinct downhole hazards:
- Coupling Point Pinching and Abrasion
As the pipe string slides past casing joints, liner hangers, and doglegs, the external coupling acts as a primary contact point against the inner casing wall. Without protection, control lines passing over the coupling absorb direct radial shock and shear forces, resulting in cable crushing or localized abrasion.
- Line Sagging and Recessed Snagging
In directional and horizontal wellbores, control lines experience differential tension. Slack in the line allows it to bow away from the pipe body between couplings, creating loops that can snag on casing landing shoulders, severe doglegs, or structural casing anomalies.
- Flow-Induced Vibration and Fatigue
High-velocity fluid flow within the casing-tubing annulus induces dynamic lateral vibration along unsupported control lines. Over long production periods, cyclic bending stress at the coupling transition point causes metal fatigue and insulation breakdown.
Design Architecture and Key Mechanical Features
Cross coupling cable protectors are engineered as protective bridges over tubing couplings. The assembly securely clamps to the pipe body on both sides of the coupling while housing control lines within recessed internal channels.
Key structural and functional elements include:
- Centralizing Protective Guard Body
The outer shell of the protector acts as a integral centralizer. Designed with streamlined, tapered lead-in and lead-out profiles, the guard body deflects smoothly off casing walls, landing nipples, liner tops, and wellheads. This prevents the protector from hanging up during trip-in or trip-out operations.
- Precision Internal Control Channels
The inner profile of the protector contains precision-machined longitudinal channels custom-contoured to match specific cable dimensions. Channels can accommodate single or multiple lines, including flat armored ESP power cables, round sensor lines, and dual hydraulic tubes. The channel encapsulates the lines below the outer wear surface, isolating them from direct casing contact.
- High-Torque Friction Clamping Mechanism
To prevent the protector from slipping along the tubing string during high-velocity running or thermal expansion, high-grade clamping mechanisms are utilized. Common clamping mechanisms include wedge-lock pin designs, high-tensile bolt-on assemblies, and heavy-duty hinge-and-latch structures. These mechanisms deliver uniform radial clamping force without collapsing the underlying tubing wall.
- Profile Contour Alignment
The inner contact pads of the protector body are precision-machined to match the exact curvature of the tubing pipe body and coupling profile. This ensures uniform contact pressure, preventing localized stress risers or damage to internal pipe coatings.
Classifications and Structural Variations
Cross coupling cable protectors are customized based on manufacturing methods, cable profiles, and structural requirements.
- Precision Cast Steel Protectors vs Stamped Steel Protectors

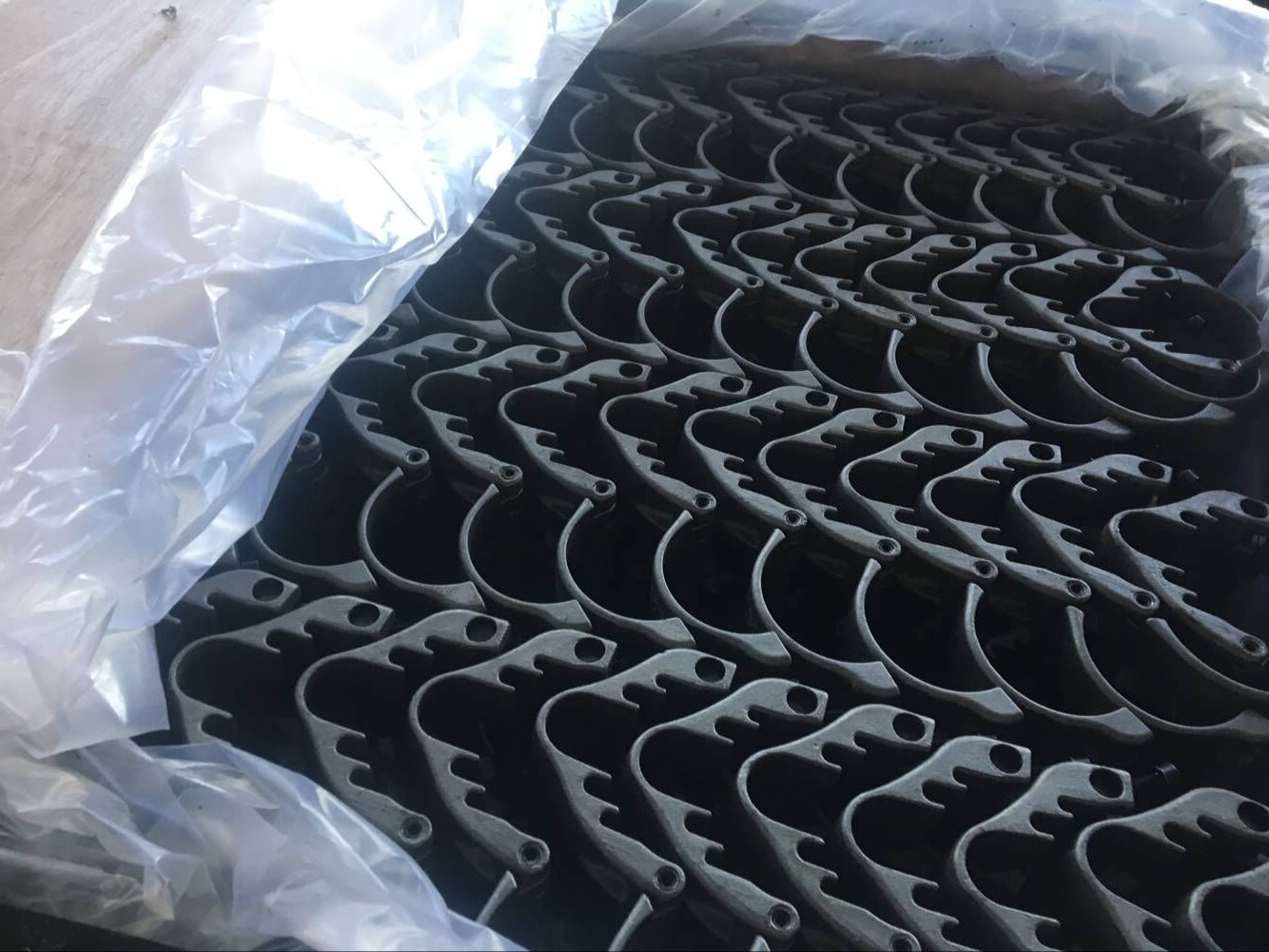

Cast Steel Protectors: Manufactured using investment casting from high-strength carbon steel, ductile iron, or stainless steel alloys. Cast protectors offer maximum structural rigidity, exceptional impact resistance, and high rotational torque tolerance, making them essential for heavy ESP cables and severe directional wellbores. Stamped Steel Protectors: Fabricated from heavy-gauge stamped steel plates. Stamped protectors offer a lightweight, cost-effective shielding solution for low-angle onshore wells with minimal dogleg severity.
- Cable and Line Accommodation Options
Single-Channel Protectors: Designed to secure one flat ESP power cable or a single hydraulic control line across the coupling. Multi-Channel Protectors: Custom-engineered with multiple parallel channels to shield complex completions containing a combination of ESP cables, subsurface safety valve lines, chemical injection capillaries, and fiber-optic monitoring lines within a single protective assembly.
- Coupling Compatibility
Protectors are engineered to fit standard API thread couplings including External Upset (EUE), Non-Upset (NUE), as well as high-torque premium gas-tight thread connections across all standard tubing sizes.
Material Selection and Sour Service Compliance
Operating cross coupling cable protectors in harsh downhole environments requires strict material selection to prevent galvanic corrosion, stress corrosion cracking, and structural failure.
- Carbon Steel and Ductile Iron
Standard carbon steel and ductile iron construction treated with anti-corrosion surface coatings provide durable mechanical protection in sweet, non-corrosive hydrocarbon environments.
- Corrosion-Resistant Alloys and NACE Compliance
In wells producing carbon dioxide or high water cuts, stainless steel alloys such as 316L and 13-Chrome prevent rapid pitting corrosion. For severe sour service wells containing hydrogen sulfide, nickel-based alloys such as Inconel 718, Inconel 625, and Monel alloys are specified in full compliance with NACE MR0175 and ISO 15156 standards to prevent sulfide stress cracking.
- Advanced Protective Coatings
Protectors are coated with electroplated zinc, thermal spray coatings, or high-performance epoxy powder coatings to prevent atmospheric corrosion during shipping and field storage, as well as chemical degradation downhole.
Field Integration Benefits and System ROI
Integrating high-performance cross coupling cable protectors into completion designs yields significant technical and financial benefits:
- Maximized Artificial Lift Run Life: Protecting ESP power cables eliminates downhole electrical short circuits caused by armor crushing, extending pump run life and maximizing cumulative oil recovery.
- Safeguarded Intelligent Completion Systems: Continuous protection for downhole sensor cables and hydraulic lines ensures uninterrupted real-time pressure, temperature, and flow data transmission.
- Rapid Rig-Floor Installation: Modern protector designs enable quick alignment and clamping on the rig floor, reducing non-productive rig time during completion running operations.
- Substantial Workover Savings: Preventing downhole control line damage eliminates premature well interventions, saving operators millions of dollars in rig mobilization and repair expenses.
