In modern petroleum production engineering, maintaining optimal flow rates in mature or declining reservoirs requires robust artificial lift mechanisms. As natural reservoir energy depletes, bottomhole pressure drops below the hydrostatic head of the fluid column, resulting in reduced production or complete well loading. Gas lift represents one of the most versatile, flexible, and reliable artificial lift methods utilized globally across onshore, offshore, and subsea assets. At the heart of every gas lift completion is the Gas Lift Valve, a precision flow-control component installed downhole along the production tubing string.
Gas lift valves regulate the injection of high-pressure gas from the casing-tubing annulus into the production tubing fluid column. By introducing gas bubbles into the multiphase fluid, the valve reduces overall fluid density, lowers bottomhole flowing pressure, and allows reservoir energy to push oil and water to the surface. Operating an improperly specified or malfunctioning gas lift valve leads to inefficient gas consumption, severe pressure fluctuations, liquid heading, and premature well shut-in. This guide provides a detailed technical evaluation of gas lift valve mechanics, structural component architecture, primary operational classifications, thermodynamic forces, and system integration strategies for petroleum production optimization.
Fundamental Operating Principles and Fluid Dynamics
The thermodynamic objective of a gas lift valve is controlled fluid aeration. High-pressure gas is supplied at the surface and injected down the casing-tubing annulus. The gas lift valve acts as a dynamic pressure-operated gate between the annulus and the tubing bore.
During operation, the valve responds to dynamic changes in annulus injection pressure, tubing fluid pressure, or a combination of both. When injection pressure reaches a predetermined threshold, the internal sealing mechanism unseats, allowing gas to pass through a calibrated orifice into the tubing. As injected gas mixes with production fluids, volumetric expansion occurs. The expanding gas bubbles reduce the average hydrostatic gradient of the fluid column. This density reduction decreases bottomhole backpressure against the formation, restoring natural reservoir inflow.
Key Structural Components of Wireline-Retrievable Gas Lift Valves
Gas lift valves are precision instruments built to withstand harsh downhole conditions, high velocity fluid erosion, dynamic shock, and corrosive downhole chemistry. Standard wireline-retrievable gas lift valves comprise four primary mechanical sub-assemblies:
- Nitrogen Charging Dome
The top portion of an injection-pressure operated gas lift valve contains a sealed dome pre-charged with high-purity nitrogen gas at a specified temperature and pressure. The compressed nitrogen provides the fundamental closing force that holds the valve closed against downhole pressures.
- Bellows Assembly
Directly below the nitrogen dome is a multi-ply convoluted metal bellows assembly. Typically manufactured from high-grade seamless Monel or Inconel alloys, the bellows acts as a flexible hydraulic seal separating the pre-charged nitrogen in the dome from external downhole wellbore fluids. The bellows compresses or expands in response to differential pressure changes, driving the valve stem position.
- Stem and Seat Assembly
The metering assembly controls physical gas flow through the valve. It consists of a precision-ground spherical ball stem made from tungsten carbide or high-hardness alloys, paired with a hardened matching seat. When the bellows compresses upward, the stem lifts off the seat, opening the internal fluid passage.
- Reverse-Flow Check Valve
Positioned at the lower end of the valve body, a spring-loaded flapper or dart check valve permits gas flow in only one direction—from the annulus into the tubing string. The check valve prevents high-pressure production fluids inside the tubing from backflowing into the casing annulus during shut-in periods, protecting the annulus from contamination and solids accumulation.
Primary Classifications: Operating Drivers and Deployment Methods
Gas lift valves are categorized based on their force drivers, mechanical structures, and downhole installation methods.
- Injection-Pressure Operated (IPO) Valves
Injection-pressure operated valves are primarily sensitive to casing injection pressure acting across the effective bellows area. Mechanics and Applications: An IPO valve opens when casing injection pressure rises above the nitrogen dome pressure. As casing pressure increases, it overcomes the dome charge and opens the valve. IPO valves are widely used for well unloading sequences and intermittent gas lift operations, offering predictable surface control over downhole injection depth.
- Production-Pressure Operated (PPO) Valves
Production-pressure operated valves are primarily sensitive to fluid pressure within the production tubing acting across the internal seat area. Mechanics and Applications: A PPO valve opens when fluid buildup inside the tubing reaches a specific hydrostatic head. This design makes PPO valves ideal for continuous gas lift completions in wells with fluctuating casing pressures or dual-completion configurations where casing pressure must remain constant.
- Orifice Valves
Unlike pressure-operated valves containing nitrogen domes and flexible bellows, orifice valves feature a fixed, calibrated orifice size with an open flow passage and an integrated reverse-flow check valve. Applications: Orifice valves serve as the primary continuous injection point at the deepest operating depth along the tubing string, delivering a stable gas injection rate without opening and closing cycles.
- Wireline-Retrievable vs Tubing-Retrievable Designs
Wireline-Retrievable Valves: Designed with an outer diameter of 1 inch or 1.5 inches, these valves land into offset pockets inside side pocket mandrels. They can be installed, pulled, or replaced using standard slickline methods without pulling the production tubing string, drastically reducing intervention costs. Tubing-Retrievable Valves: Threaded directly into the tubing string as an integral component, offering higher structural integrity and larger internal flow profiles for high-volume wells.
Thermodynamic Calibration and Bench Setting
Accurate gas lift valve performance relies on precise workshop calibration prior to downhole deployment. Because nitrogen gas expands and contracts in response to temperature changes, the bench setting pressure of the nitrogen dome must be mathematically adjusted to account for elevated bottomhole temperatures.
Engineers utilize specialized thermodynamic gas law calculations to determine the exact Test Rack Opening Pressure (TROP) required at surface temperatures (typically 60 Degrees Fahrenheit or 15 Degrees Celsius) so that the valve opens at the exact target pressure when exposed to downhole reservoir temperatures.
Material Selection and Sour Service Compliance
Operating gas lift valves in aggressive wellbore environments requires strict material specifications to avoid mechanical fatigue, pitting corrosion, and rapid erosion.
Corrosive Fluid Considerations: In wells producing carbon dioxide, high water cuts, or hydrogen sulfide, standard stainless steel components suffer rapid degradation. Metallurgy and NACE MR0175 Compliance: Valve bodies are manufactured from 13-Chrome, Super 13-Chrome, 316L Stainless Steel, Monel K500, or Inconel 718. Premium bellows constructed from multi-ply Inconel resist cyclic stress cracking and chemical attack. Seating surfaces feature tungsten carbide inserts to resist high-velocity gas erosion and solid sand particle impact. Materials comply fully with NACE MR0175 and ISO 15156 standards for sour service applications.
Gas Lift Solutions from Dongying Baosia Petroleum Technology Co., Ltd.
Achieving total artificial lift optimization requires high-precision, API-certified gas lift equipment engineered to precise dimensional tolerances and metallurgical standards.
Dongying Baosia Petroleum Technology Co., Ltd. is a global supplier of API-certified oilfield equipment and downhole artificial lift systems. We provide a comprehensive portfolio of gas lift valves, side pocket mandrels, and associated completion tools engineered for demanding onshore, offshore, and sour service applications. Our gas lift product portfolio includes:

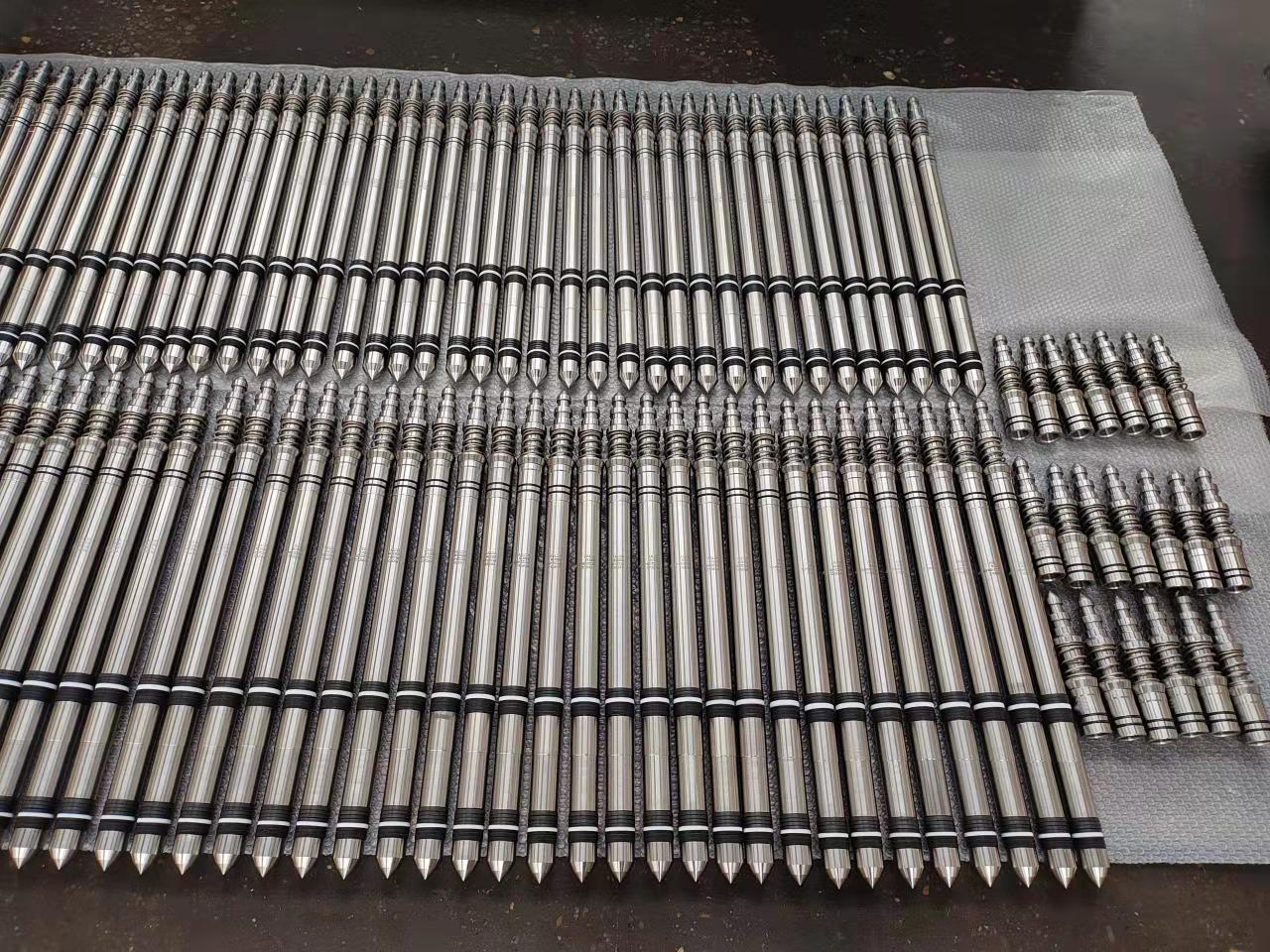

1-Inch and 1.5-Inch Wireline-Retrievable Injection-Pressure Operated (IPO) Valves 1-Inch and 1.5-Inch Wireline-Retrievable Production-Pressure Operated (PPO) Valves Continuous Flow Orifice Valves and Dummy Valves for well testing and blanking Tubing-Retrievable Gas Lift Assemblies for high-rate completions One-Piece Forged and Welded Side Pocket Mandrels in 1-Inch and 1.5-Inch Pocket Configurations High-Precision Tungsten Carbide Stem and Seat Assemblies Multi-Ply Inconel Bellows for extended fatigue life in dynamic pressure cycles NACE MR0175 Compliant Alloys including 13Cr, Super 13Cr, Monel, and Inconel 718 Complete Slickline Workover Accessories including Kick-Over Tools, Running Tools, and Pulling Tools
Whether you are configuring a new gas lift completion, optimizing an aging field under declining reservoir pressure, or sourcing reliable API-compliant completion tools for global field developments, our experienced engineering team is ready to support your technical specifications.
Contact Dongying Baosia Petroleum Technology Co., Ltd. today to consult with our technical specialists, review detailed product documentation, or receive competitive price quotations for your international oilfield procurement projects.
