In the lifecycle of an oil well, natural reservoir drive mechanisms, such as gas cap drive, solution gas drive, or water drive, eventually deplete. As bottomhole pressure decreases, the well can no longer lift the hydrostatic liquid column to the surface, resulting in reduced flow rates or complete loading. Among the primary artificial lift technologies deployed across the global oil and gas industry, Gas Lift stands out as one of the most versatile, reliable, and cost-effective methods for restoring and sustaining production.

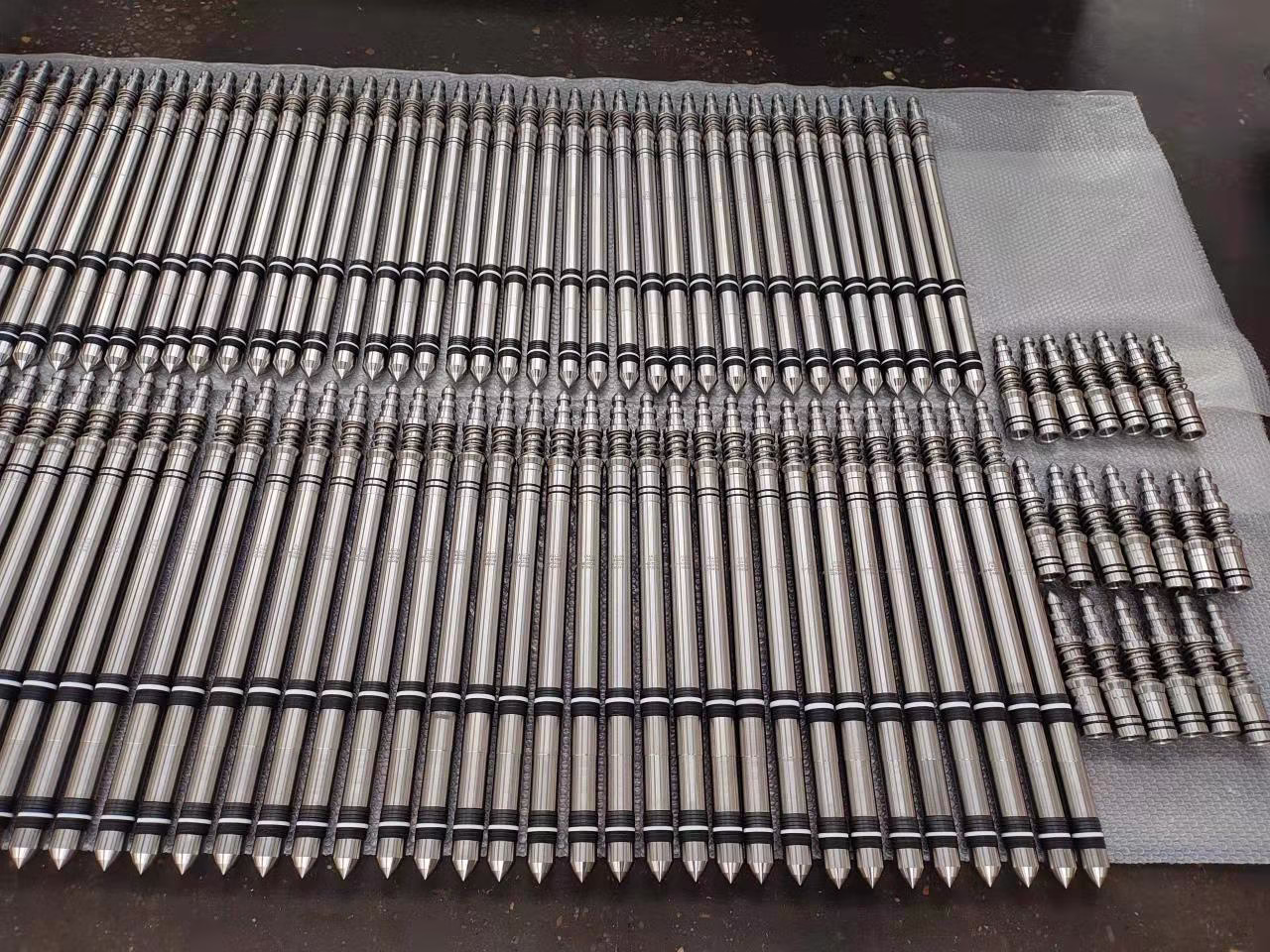

At the heart of any gas lift system is the Gas Lift Valve. Installed inside specialized side pocket mandrels or conventional tubing retrievable mandrels along the tubing string, these high-precision flow-control devices regulate high-pressure gas injection from the casing-tubing annulus into the production tubing. By reducing the average fluid density inside the tubing string, the gas lift valve effectively lowers the bottomhole flowing pressure, enabling the reservoir to push hydrocarbons to the surface.
Operating Principles and System Thermodynamics
The primary thermodynamic function of a gas lift valve is controlled fluid aeration. When natural drive mechanisms fail to overcome hydrostatic head pressure and surface line backpressure, compressed gas is injected down the annulus.
The injection path follows a structured progression: High-Pressure Injected Gas enters through the Annulus. It moves into the Side Pocket Mandrel and through the Gas Lift Valve. This aerates the fluid column, reducing its overall Hydrostatic Density. Finally, sustained production is pushed out through the Tubing Outlet at the surface.
As the compressed gas passes through the calibrated orifice or metering port of the gas lift valve into the production fluid column, two primary physical phenomena occur:
- Fluid Density Reduction: The gas bubbles mix with the wellbore liquids, including oil, water, and condensate, forming a two-phase mixture. This lowers the composite fluid gradient, for example from 0.45 psi per foot to 0.15 psi per foot, drastically reducing bottomhole flowing pressure.
- Expansion Drive: As the gas bubbles ascend, hydrostatic pressure decreases, causing the gas to expand. This volumetric expansion imparts kinetic energy to the liquid slugs, boosting fluid velocity to the surface.
Anatomy and Internal Components of a Gas Lift Valve
A standard wireline-retrievable gas lift valve is a sophisticated mechanical assembly engineered to operate reliably under severe downhole temperatures, differential pressures up to several thousand PSI, and highly corrosive chemical environments.
Key internal components include:
- Charging Dome for Nitrogen Pre-charge Pressure
- Metallic Bellows acting as a Flexible Hydrostatic Barrier
- Stem and Carbide Tungsten Ball Seat Metering Assembly
- Valve Orifice Calibrated Flow Port
- Reverse Flow Check Valve to Prevent Annular Backflow
Details of primary internal assemblies:
- The Nitrogen Charging Dome: Located at the top section of the valve, the dome serves as the primary pressure-element for Injection-Pressure Operated valves. It is pre-charged with pure Nitrogen gas to a specified pressure at a surface temperature of 60 degrees Fahrenheit. When installed downhole, heat transfer from the reservoir fluid raises the dome temperature, increasing the internal nitrogen pressure according to real-gas thermodynamic state equations.
- The Sealed Bellows Assembly: The bellows acts as a flexible, pressure-sensitive barrier separating the internal dome pressure from external wellbore fluid pressures. Manufactured from high-nickel alloys such as Monel 400, Inconel 625, or Hastelloy, multi-ply seamless bellows withstand millions of flexural cycles without fatigue failure or pressure degradation.
- Stem, Ball, and Main Seat Assembly: The valve orifice sealing mechanism consists of a precision-ground tungsten carbide or stellite ball stem mating against a hardened seat. The diameter of the seat port determines the effective area subjected to casing injection pressure and tubing pressure, dictating the force balance required to open and close the valve.
- Integrated Reverse-Flow Check Valve: Positioned at the lower section of the valve body, the spring-loaded reverse-flow check assembly features a flapper or dart seal. Its critical safety function is to prevent production fluid from flowing backward from the tubing string into the casing annulus during dynamic pressure surges, shut-ins, or unloading sequences.
Classification of Gas Lift Valves
Gas lift valves are categorized based on their functional operational characteristics and mechanical deployment methods.
Functional Classifications:
Injection-Pressure Operated Valves Primary Force Driver: Casing injection pressure. Mechanism: The valve remains closed due to internal nitrogen dome pressure acting on the bellows area. As injection pressure in the casing increases, it acts across the bellows area, overcoming the dome force to open the valve stem. Primary Application: Widely used as unloading valves in continuous gas lift installations and operating valves in intermittent gas lift systems.
Production-Pressure Operated Valves Primary Force Driver: Tubing production pressure. Mechanism: The valve port area is open to tubing fluid pressure. When fluid level or pressure inside the production tubing rises to a targeted threshold, the hydrostatic force acts against the bellows seal to lift the valve stem off its seat. Primary Application: Continuous gas lift wells with fluctuating casing pressures or wells experiencing severe fluid loading conditions.
Orifice Valves Mechanism: Orifice valves do not utilize a pressure-charged nitrogen dome or flexible bellows assembly. Instead, they feature a fixed, calibrated orifice size paired with an integral reverse-flow check valve. Primary Application: Positioned in the lowest side pocket mandrel as the final injection point in continuous gas lift installations where stable gas volume is maintained at surface.
Mechanical Deployment Classifications:
Wireline-Retrievable Valves: Designed with standard 1-inch or 1.5-inch outer diameters, these valves feature top-latching profiles such as BK-2, RK, or AC latches. They are landed into side pocket mandrels via standard slickline tools, eliminating the need to pull the tubing string for valve replacement or recalibration. Tubing-Retrievable Valves: Threaded directly into the exterior of the tubing string. While cost-effective for shallow onshore wells, replacing a tubing-retrievable valve requires pulling the entire tubing string out of the hole.
Continuous vs Intermittent Gas Lift Operations
Depending on reservoir inflow performance, bottomhole pressure, and fluid productivity index, engineers select between continuous and intermittent gas lift strategies using specialized valve configurations.
Operating Parameter Comparison:
Continuous Gas Lift: Reservoir Inflow Capability: High Volumetric Rate or High Bottomhole Pressure Gas Injection Rhythm: Uninterrupted Constant Injection Rate Primary Valve Type: Orifice Valve or Injection-Pressure Operated Valve Hydrostatic Lift Dynamic: Steady Aerated Liquid Column Circulation
Intermittent Gas Lift: Reservoir Inflow Capability: Low Productivity or Low Reservoir Pressure Gas Injection Rhythm: Cyclic or Periodic High-Volume Injections Primary Valve Type: Injection-Pressure Operated Valve with Large Port Hydrostatic Lift Dynamic: Piston-like Slug Displacement Mechanism
Technical Considerations: Materials, Corrosion, and Valve Spacing
To achieve optimal economic run-life, gas lift valves must be engineered to withstand severe fluid dynamic forces and harsh chemical environments.
Metallurgy and Environmental Resistance: Standard Sweet Environments: High-grade 316L Stainless Steel or 17-4PH Stainless Steel. Sour Service with H2S and CO2: Nickel-chromium alloys such as Inconel 718, Inconel 625, or Monel 400 compliant with NACE MR0175 and ISO 15156 standards to eliminate stress corrosion cracking and hydrogen embrittlement. Erosion Mitigation: Tungsten carbide valve stems, seats, and choke orifices resist high-velocity solid particle erosion caused by formation sand production.
Valve Spacing Design Mechanics: Proper positioning of gas lift valves along the tubing string ensures smooth unloading sequence from top to bottom. During initial startup, high-pressure gas displaces completion fluid through successive unloading valves:
- As gas enters the uppermost valve, the fluid level drops to the next mandrel depth.
- The pressure drop caused by aeration allows the upper valve to close based on its calibrated dome pressure differential.
- The process continues until injection transitions to the lowest operating valve, establishing steady-state production.
Gas Lift Solutions from Dongying Baosia Petroleum Technology Co., Ltd.
Selecting the right gas lift valve configuration is crucial to maximizing well uptime, protecting formation health, and achieving targeted hydrocarbon production rates.
Dongying Baosia Petroleum Technology Co., Ltd. provides a comprehensive portfolio of API-certified gas lift equipment engineered to perform under demanding downhole conditions. We offer a full supply range of high-precision products, including:
Injection-Pressure Operated Gas Lift Valves in 1-inch and 1.5-inch Wireline Retrievable options Production-Pressure Operated Gas Lift Valves Standard and Heavy-Duty Orifice Valves Dummy Valves and Chemical Injection Valves Side Pocket Mandrels and Wireline Latching Assemblies Custom Corrosion-Resistant Alloy Configurations including Monel, Inconel, and NACE MR0175 Compliant materials
Whether you are designing a new continuous lift installation, optimizing an aging field under intermittent lift, or replacing downhole flow-control assemblies, our engineering team is ready to support your technical specifications.
Contact Dongying Baosia Petroleum Technology Co., Ltd. today to consult with our technical specialists, request detailed product catalogs, or receive customized quotations for your international oilfield procurement needs.
